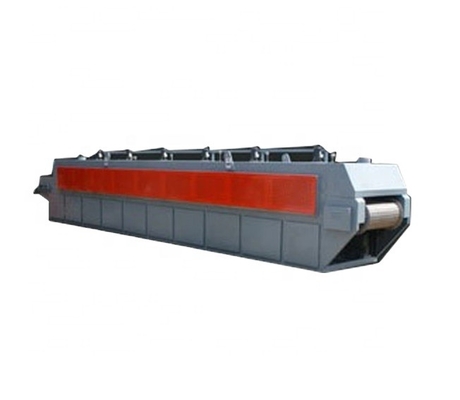

TSL Continuous Series Furnace Treatment Heat Treatment Plant Factory Protective Atmosphere Quenching Furnace

1 Set
MOQ
$34,000.00(>=1 Sets)
τιμή
TSL Continuous Series Furnace Treatment Heat Treatment Plant Factory Protective Atmosphere Quenching Furnace
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Condition: New
Type: Mesh belt furnace(oven)
Usage: Heat Treatment Furnace
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2020
Warranty of core components: 1 Year
Core Components: PLC
Voltage: Onsite Condition
Dimension(L*W*H): customized
Weight (T): 4.5 T
Power (kW): 180
Warranty: 1 Year
Key Selling Points: Accurate temperature control
Applicable Industries: Manufacturing Plant
Showroom Location: United States, Italy
After-sales Service Provided: Engineers available to service machinery overseas
Weight: 4.5Ton
Power(W): Adjustable
After Warranty Service: Video technical support, Online support, Spare parts
Local Service Location: Turkey, United States, Italy, France, Germany, India, Spain
Πιστοποίηση: CE
Βασικές πληροφορίες
Πιστοποίηση: CE
Πληρωμής & Αποστολής Όροι
Packaging Details: wooden case
Supply Ability: 3 Set/Sets per Month
Περιγραφή προϊόντων
Product Description

Product Applications

Applied to the carburizing, carbonitriding, quenching under controlled atmosphere of springs, spring washers, standard parts, bearings, tapping screw, gearing chains, automobiles parts, hardwares, etc...

Performances And Features

1) Raisonable structure, intergrated auto control system, secure, simple operation, convenient maintenance.
2) Perfect temperature distribution allows the quality of the treated pieces uniform and reliable.
3) All-fiber lining, fast temperature hating-up, reduction of electricity consumption, efficient heat preservation, energy-saving.
4) Smooth and stable running of stainless steel belt, stepless speed regulation.
5) Together with the cleaning machine, feeding machine, distribution machine, quenching tank  and tempering furnace, we can set an automatic production line.

Detailed Parameters

Model
Product name
Rated Power
(KW)
Rated Temperature
(℃)
Dimensions Of Work Chamber
(L×W×H) (mm)
Productivity
(kg/h)

TSL-35-9
Mesh-belt Furnace With Muffle Pot
35
920
2200×220×50
60
TSL-45-9
Mesh-belt Furnace With Muffle Pot
45
920
2500×300×50
80
TSL-60-9
Mesh-belt Furnace With Muffle Pot
60
920
2800×300×50
100
TSL-70-9
Mesh-belt Furnace With Muffle Pot
70
920
3000×300×60
120
TSL-75-9
Mesh-belt Furnace With Muffle Pot
75
920
3600×300×80
150
TSL-90-9
Mesh-belt Furnace With Muffle Pot
90
920
4700×300×80
200
TSL-120-9
Mesh-belt Furnace With Muffle Pot
120
920
4700×400×100
250
TSL-150-9
Mesh-belt Furnace With Muffle Pot
150
920
4700×500×120
300
TSL-180-9
Mesh-belt Furnace With Muffle Pot
180
920
4700×500×160
350
TSL-200-9
Mesh-belt Furnace With Muffle Pot
200
920
4700×500×200
400
Notes
We have the ability to design and manufacture according to the customer' special needs. We also undertake the manufacture, heavy repair and renovation of other furnace types.
Packing & Delivery
Certifications
Production Site
Exhibitions
About Us

We are a company specializing in the design, production of continuous hot-wind tempering furnaces, continuous protective atmosphere quenching furnaces, CNC spring end grinding machines, grinding wheels and industrial dust aspirators.

We possess the ISO9001:2008 and C.E certificate. Our products are sold to the United States, Canada, Europe, Argentina, South Korea, India, etc... and gains the deep confidence from our long-run customers in the sectors as springs, clips, spring cushion, screws, bearings, standard parts, hardware, chains, stamping parts, cast products of high chrome and high manganese, rollers.
